All-in-One IP55 Weatherproof Outdoor Power Cabinets, Modular -48VDC Rectifiers, Edge Surveillance Enclosures, and Certified High-Safety LiFePO4 Battery Storage Systems.
IP55 Certified
CE LVD/EMC
UN38.3 Safety
RoHS Compliant
ISO 9001 Quality
Industrial turnkey robustness from factory pre-assembly to harsh environment operation.
No on-site component matching headaches. Every cabinet comes fully integrated with distribution subracks, rectifiers, inverters, smart BMS lithium batteries, and door-mounted industrial air conditioning—factory tested, aged, and ready to power up upon delivery.
Specifically engineered for harsh outdoor environments, from extreme desert heat in the Middle East and Africa to humid coastal regions. Features heavy-duty galvanized steel, anti-corrosion electrostatic outdoor coating, internal PEF thermal insulation, and an industrial-grade AC600W climate controller.
Seamlessly power both high-precision DC telecom equipment/PoE switches and AC surveillance PTZ cameras, traffic radars, and optical transmission units without interference or harmonics.
Equipped with 15.36kWh to 20.48kWh rack-mounted lithium battery banks. Full compliance with international shipping regulations (UN38.3, MSDS, and maritime Dangerous Goods packaging certificates) ensures zero customs delay.
Comprehensive industrial power infrastructure—from modular DC subracks and LiFePO4 battery banks to turnkey IP55 multi-bay outdoor power stations.

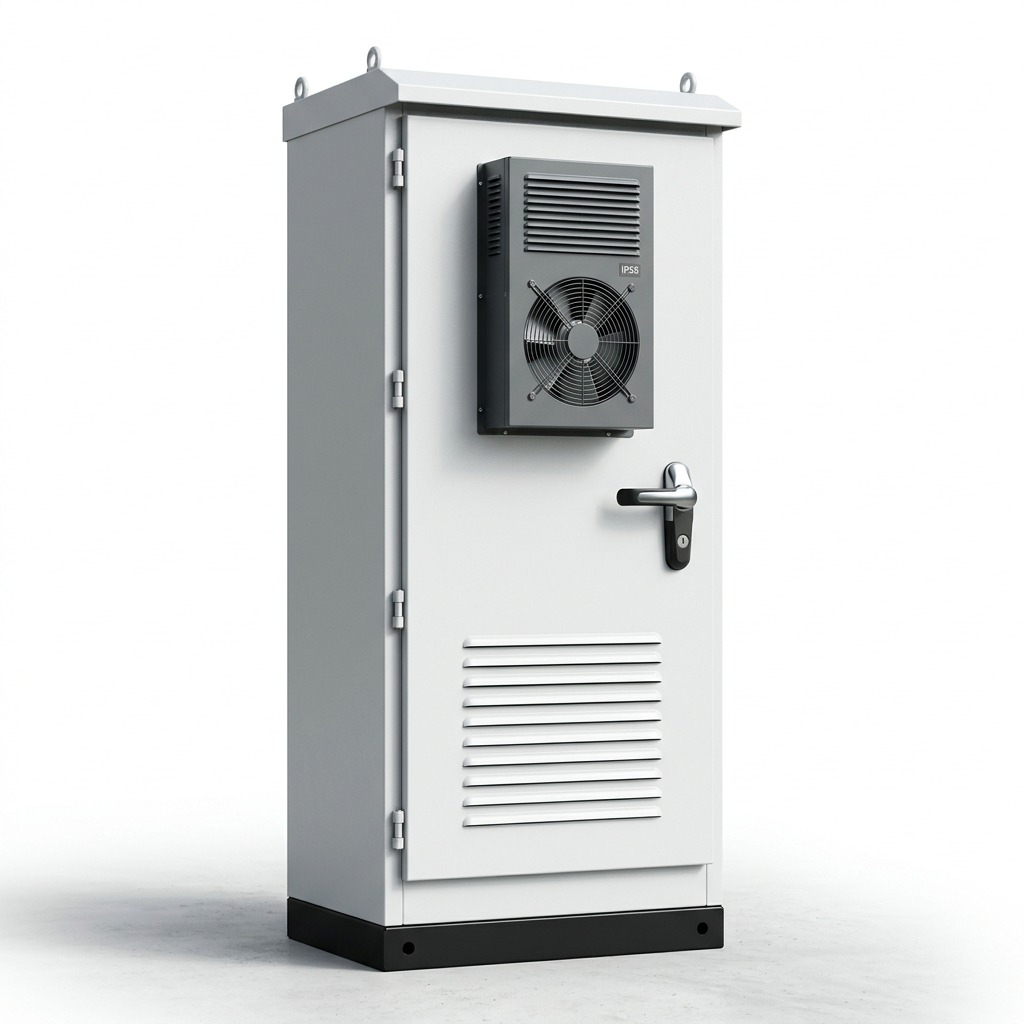

Complete turnkey IP55 enclosure with integrated modular rectifiers, pure sine wave inverters, LiFePO4 storage, and MAC600W door-mount air conditioning.

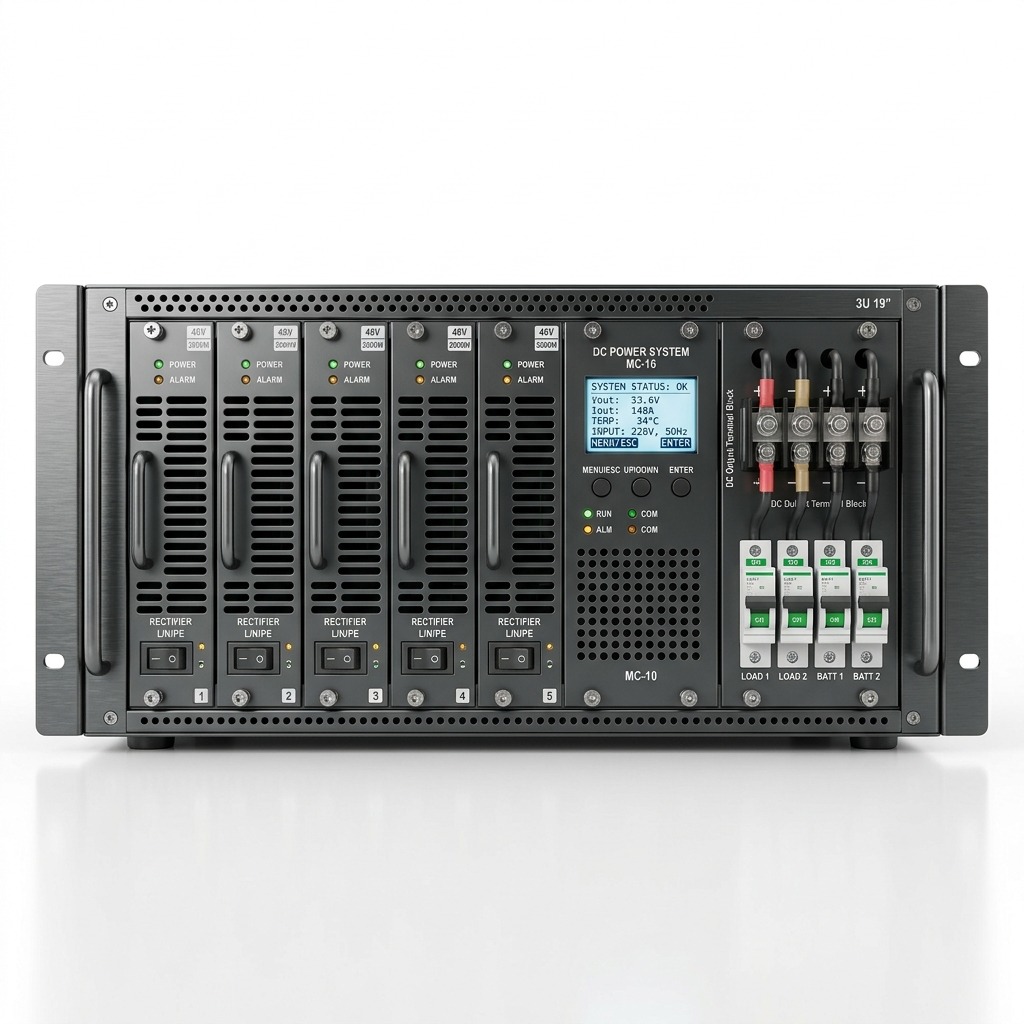

High-density 1U/2U/3U 19-inch rackmount power shelves with hot-swappable 48V/50A rectifier modules delivering up to 96.5% peak energy conversion efficiency.

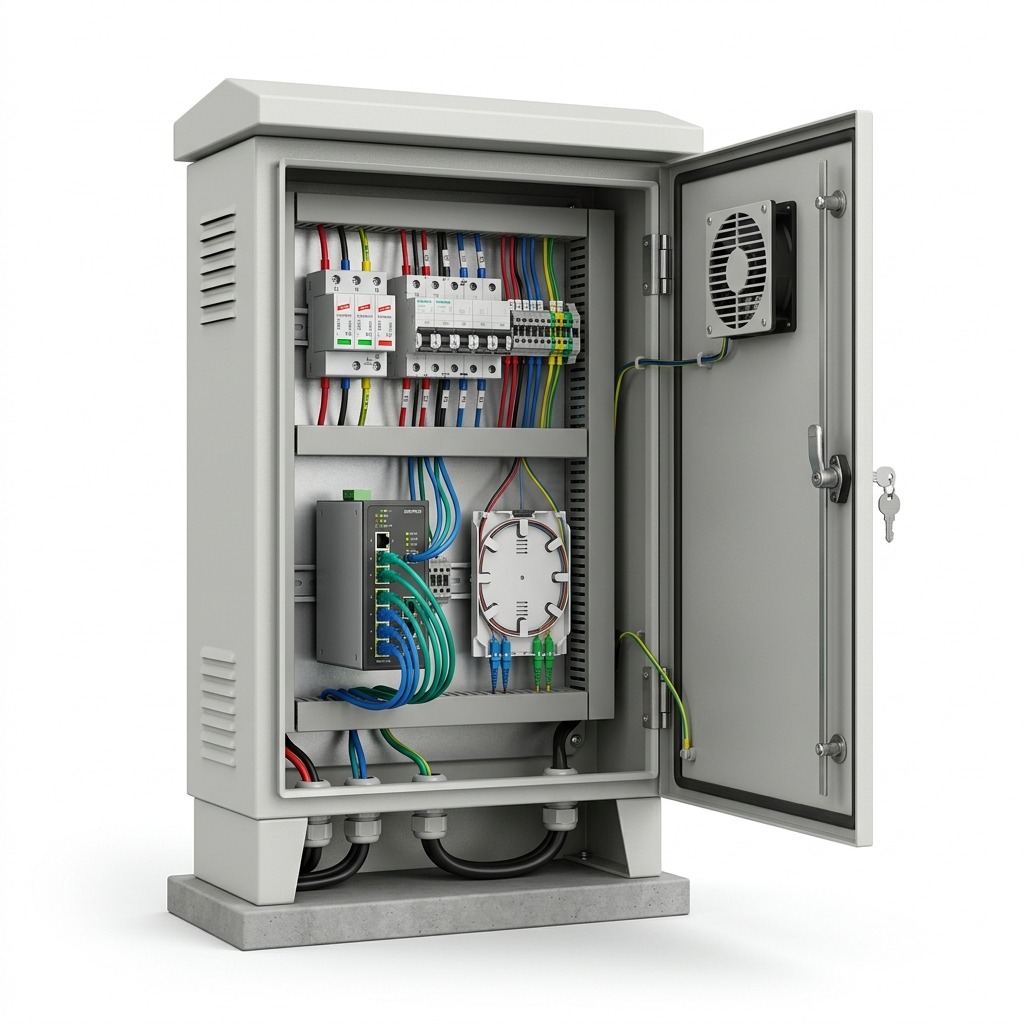

Compact curbside and pole-mounted weatherproof enclosures engineered for urban ANPR camera networks, traffic radars, and VMS intelligent signs.

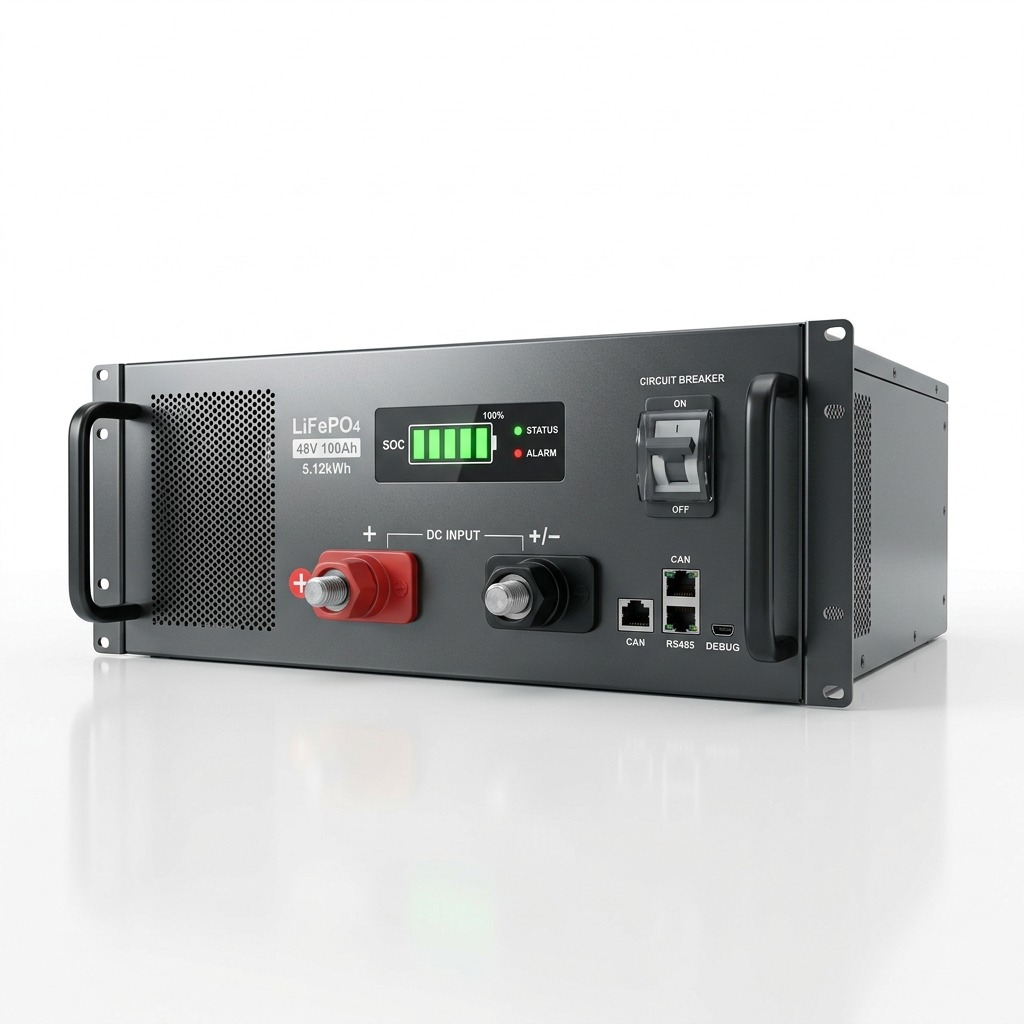

Standard 19-inch rack-mounted lithium iron phosphate battery packs with intelligent BMS balancing, extended cycle life, and global UN38.3 sea export clearance.

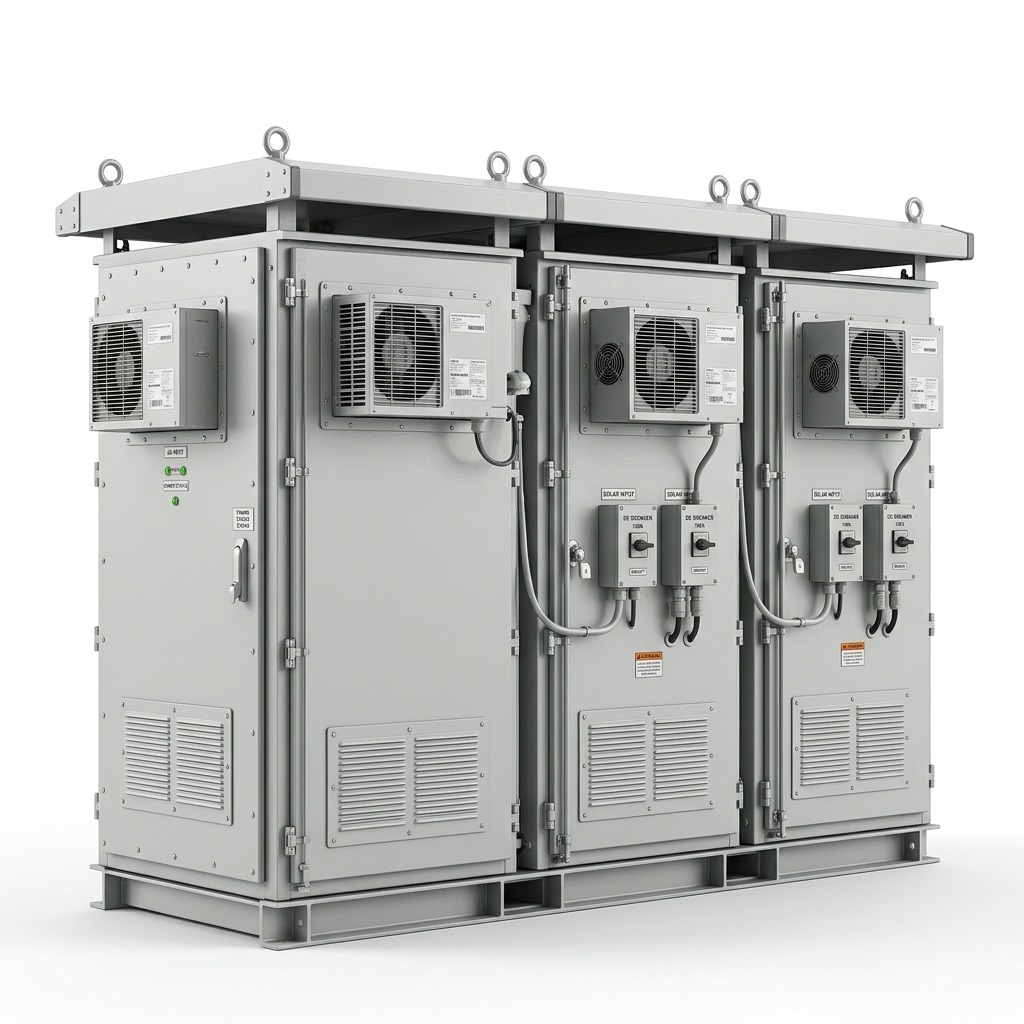

Multi-source renewable hybrid power stations combining solar MPPT charge controllers, diesel generator auto-start, and multi-bay battery backup for remote telecom sites.

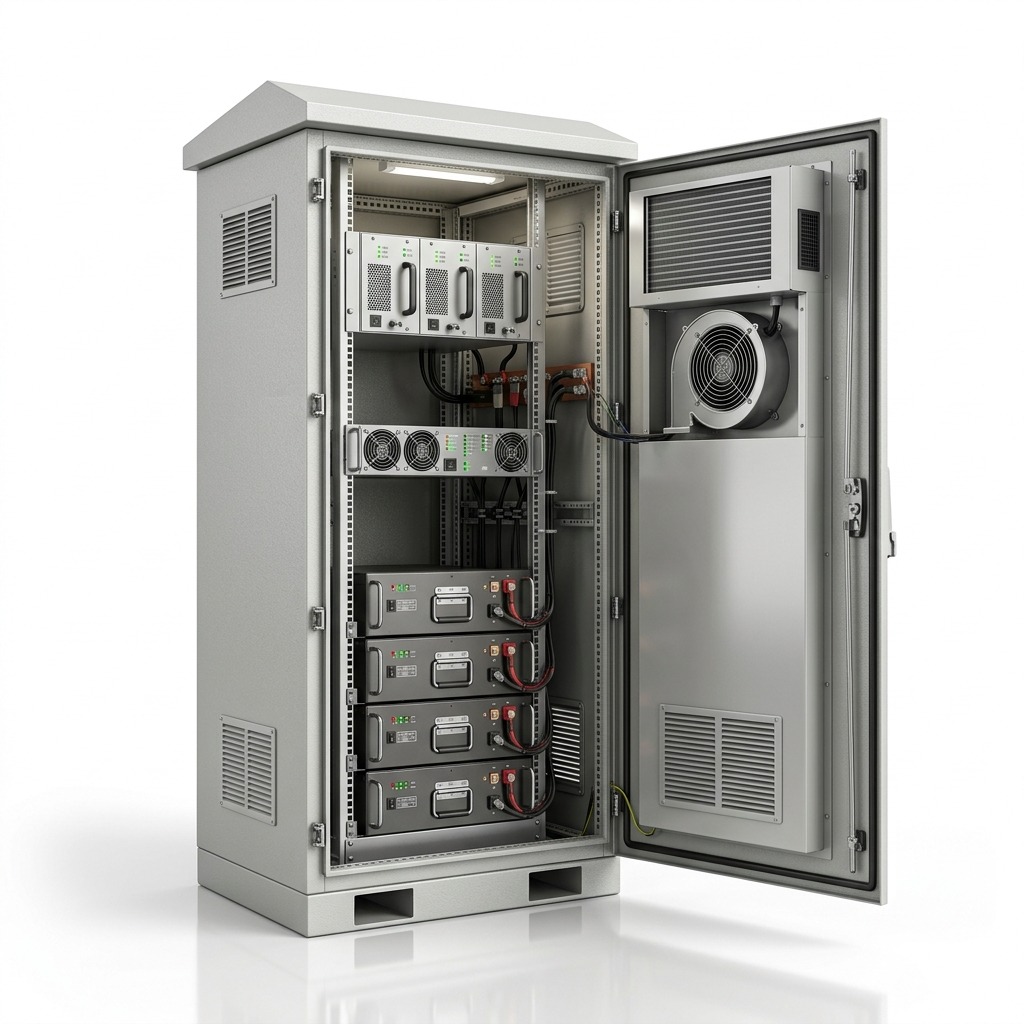

Need bespoke dimensions, specialized voltage tap-offs, or country-specific certifications? Our mechanical & electrical engineers deliver full CAD drafting and custom builds in 15 days.
Monochrome 2D orthographic engineering projections and single-line diagram compliant with IEC 62368 and IEC 60364 industrial standards.
2D orthographic projection (Front & Side elevations) with millimeter dimension callouts (1600mm H × 850mm W × 850mm D), sloped canopy, door-mounted AC, multi-point lock handles, and heavy plinth with forklift pockets. Drawing No: BJ-2026-ENCL-GA-001, Rev 0.
Complete electrical topology conforming to IEC 60364: Dual AC grid input, Class B/C SPD surge protection, ATS switch, Huawei modular rectifier shelf (-48VDC), intelligent BMS battery bank, 2000W pure sine inverter (220VAC), and isolated AC/DC branch breakers. Drawing No: BJ-2026-POW-SLD-002, Rev 0.
Drag the load slider to instantly calculate estimated runtime for your site's surveillance or telecom payload.
* Calculation incorporates 90% Depth-of-Discharge (DoD), 92% DC/AC conversion efficiency, and internal cooling auxiliary headroom.
Proven stability across smart city infrastructures, desert highway nodes, and remote telecom grids.
Ensures zero-downtime operation for macro/micro BTS, BBU, RRU, and microwave transmission equipment across remote mountain tops, deserts, and harsh climates with seamless battery failover.
Direct pole-mounted and curbside placement. Powers high-resolution ANPR cameras, speed radars, roadside VMS LED displays, and optical switches with dual -48VDC and 220VAC clean power.
Select between standard 970mm, high-capacity 1120mm dual-inverter enclosures, and modular telecom subracks.
| Model Series | Dimensions (H x W x D) | Rectifier Capacity | Inverter Module | LiFePO4 Storage | Cooling Unit | Autonomy |
|---|---|---|---|---|---|---|
| BJ-PWR-01 Type 01 | 1600 × 850 × 850 mm | -48VDC / 100A (Modular) | 2000W Pure Sine | 15.36 kWh (300Ah) | Door AC 600W | 12 - 24 Hours |
| BJ-PWR-02 Type 02 | 1800 × 900 × 900 mm | -48VDC / 200A (Modular) | 3000W Pure Sine | 20.48 kWh (400Ah) | Door AC 800W | 16 - 32 Hours |
| BJ-PWR-03 Tri-Bay | 1800 × 1800 × 900 mm | -48VDC / 300A (Modular) | 5000W Pure Sine | 30.72 kWh (600Ah) | Dual AC 800W | 24 - 48 Hours |
| BJ-REC-48 Subrack | 3U × 19" Rackmount | -48VDC / 50A - 200A | Optional 1U Inv | External Rack Pack | Forced Air Fans | Configurable |
Eliminating buyer risk through pre-shipment aging tests, sea-worthy palletizing, and hazardous goods certification.
Neat cable harness management, industrial copper busbars, and DIN-rail circuit breakers fully labeled in English.
Every power subrack and inverter module undergoes continuous full-load burn-in testing before enclosure packaging.
Reinforced wooden crates and shock-absorbent corner guards complying with UN38.3 maritime dangerous cargo codes.
Key technical inquiries from international project contractors and engineering procurement teams.
Share your required load wattage, runtime target, and installation environment. Our engineering team will supply a complete technical drawing and competitive quote within 24 hours.
